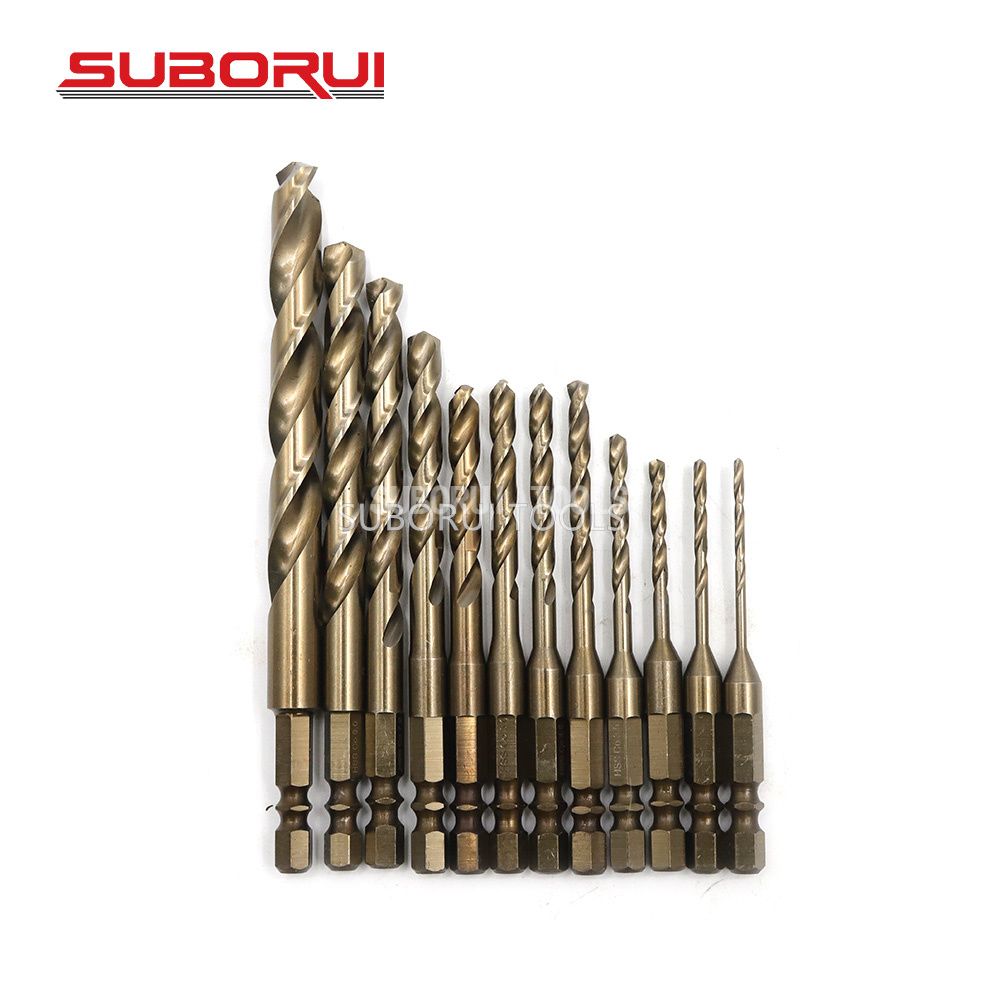

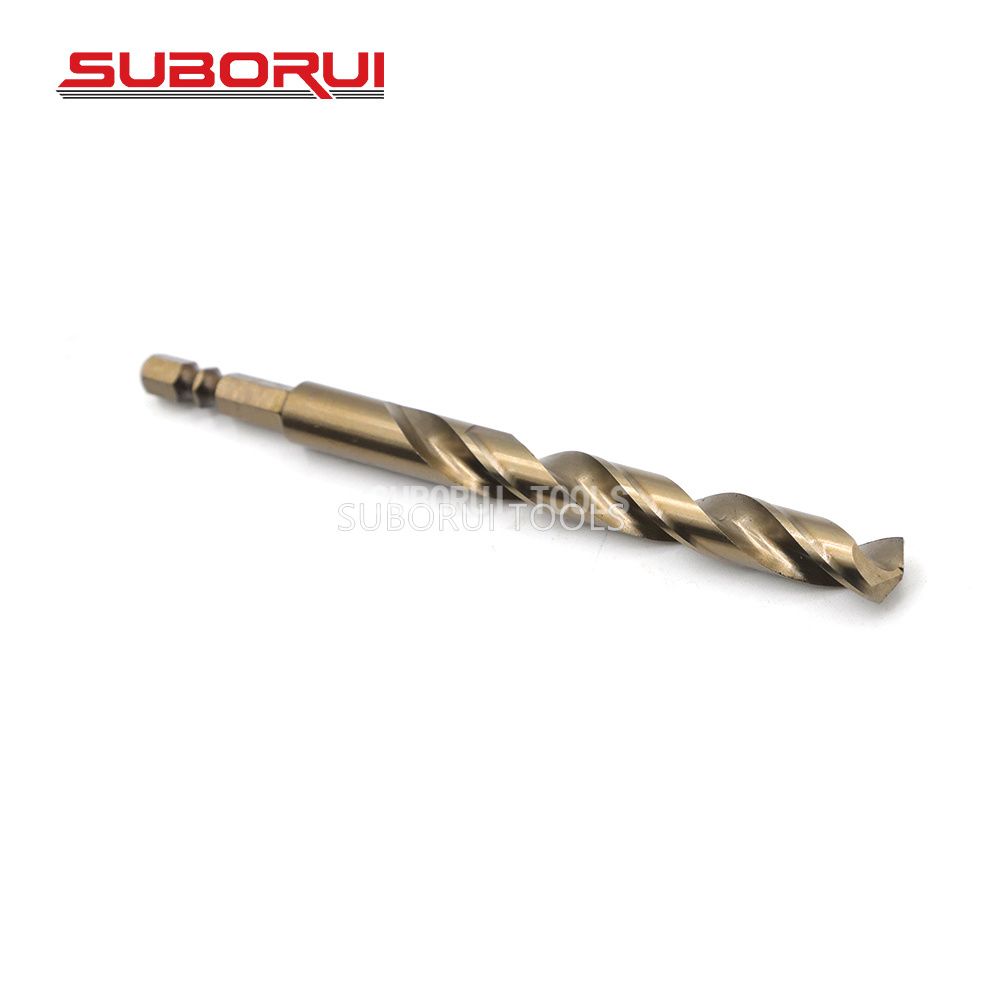

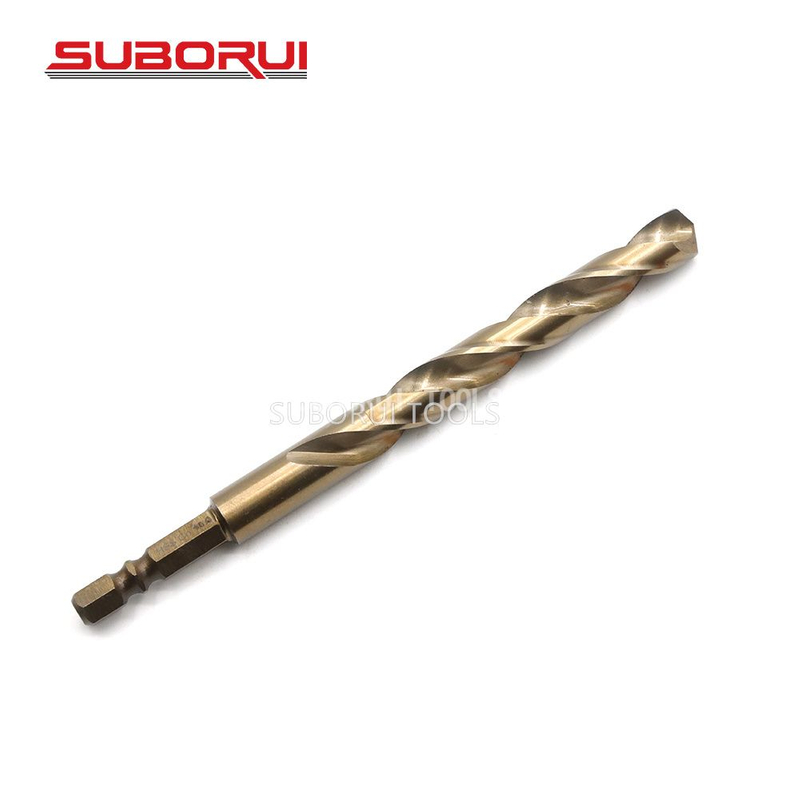

● Manufactured from M35 premium grade high speed steel. For use in a wide range of materials in the iron and steel families
such aluminum, iron, stainless steel and other hard metal drilling.
● The 135 degree split point tip and twist design helps with cutting speed while providing easy self centering without walking.
● 1/4" Hex Shank can be used in quick change impact drivers.
● For use in a wide range of materials in the iron and steel families such aluminum, iron, stainless steel and other hard metal drilling
| Diameter(mm) | Flute Length
(mm) | Overall Length
(mm) | Shank DIA
(mm) | Shank Length
(mm) |
| 1.50 | 17.00 | 65.00 | 6.35 | 40.00 |
| 2.00 | 27.00 | 75.00 | 6.35 | 40.00 |
| 2.50 | 27.00 | 75.00 | 6.35 | 40.00 |
| 3.00 | 27.00 | 75.00 | 6.35 | 40.00 |
| 3.50 | 32.00 | 80.00 | 6.35 | 40.00 |
| 4.00 | 42.00 | 90.00 | 6.35 | 40.00 |
| 4.50 | 42.00 | 90.00 | 6.35 | 40.00 |
| 5.00 | 42.00 | 90.00 | 6.35 | 40.00 |
| 5.50 | 42.00 | 90.00 | 6.35 | 40.00 |
| 6.00 | 42.00 | 90.00 | 6.35 | 40.00 |
| 6.50 | 52.00 | 100.00 | 6.35 | 40.00 |
| 1/8 | 27.00 | 75.00 | 6.35 | 40.00 |
| 5/32 | 42.00 | 90.00 | 6.35 | 40.00 |
| 3/16 | 42.00 | 90.00 | 6.35 | 40.00 |
| 1/4 | 52.00 | 100.00 | 6.35 | 40.00 |
