SUBORUI
| Availability: | |
|---|---|
| Quantity: | |

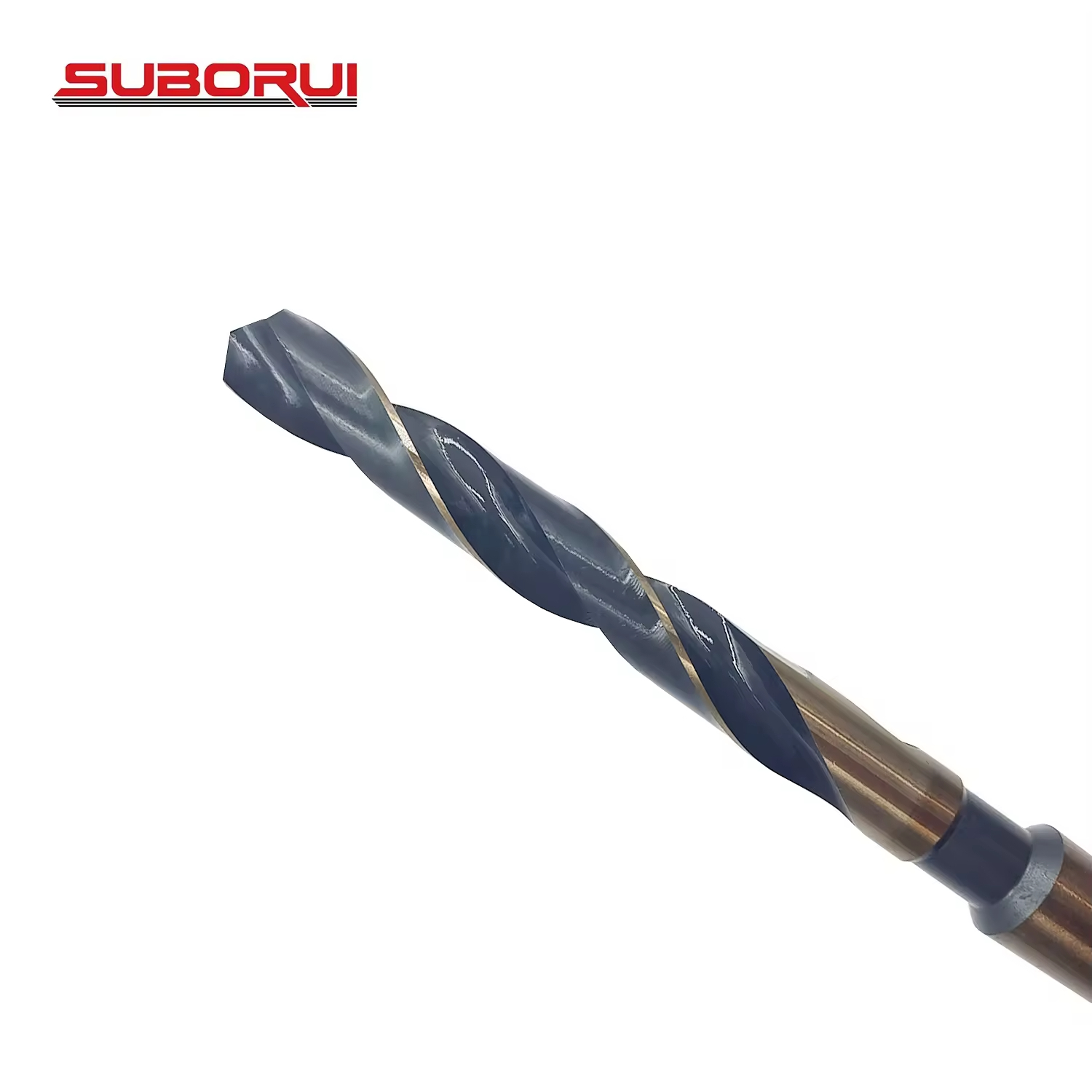

With 135 degree drill point, allowing for a cleaner drill hole and less slippage when starting
High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Black oxide treatment adds lubricity and creates small pockets on the surface of the tool that act to hold coolant near the cutting edge

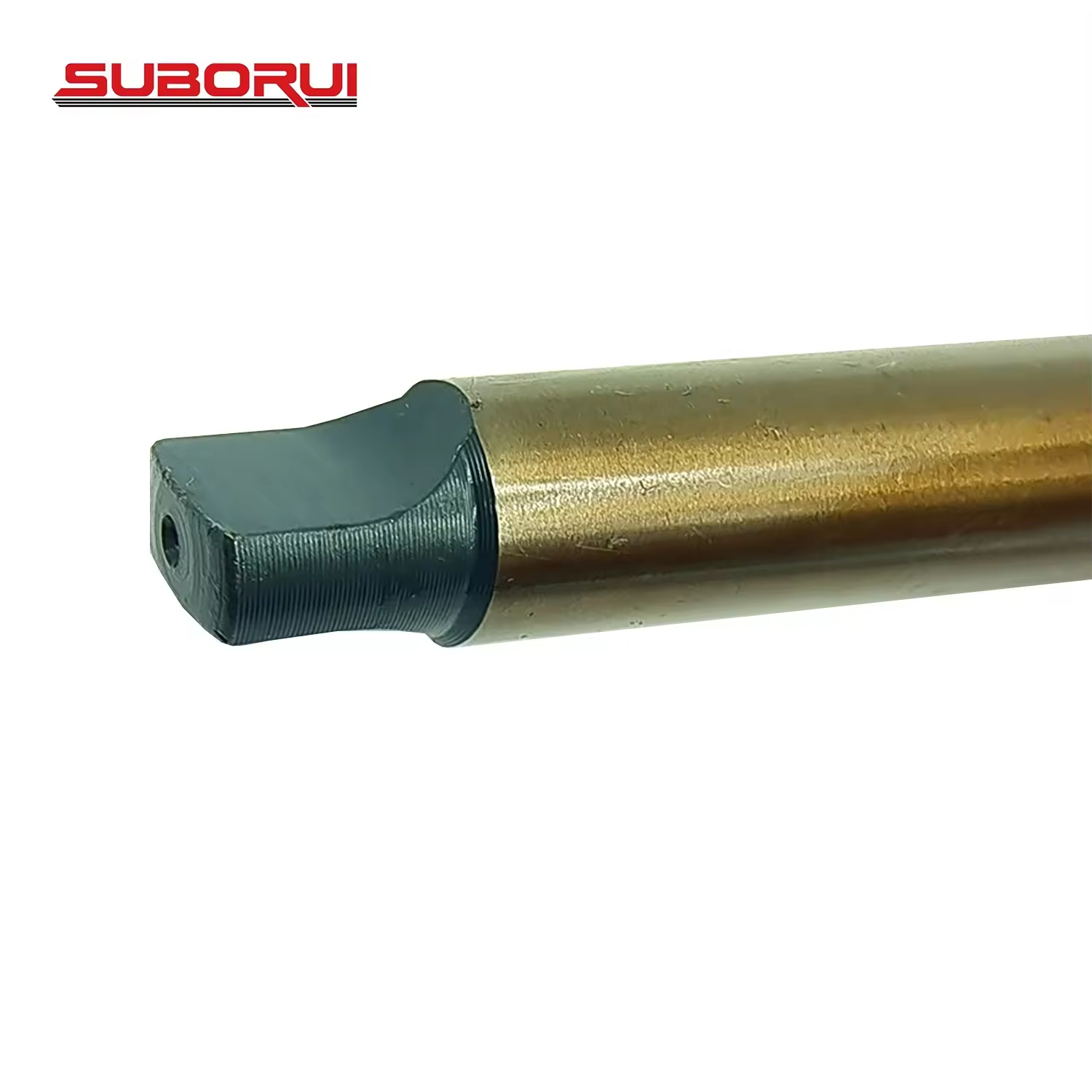

Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters
D*L2*L1*Morse | D*L2*L1*Morse | D*L2*L1*Morse | D*L2*L1*Morse | D*L2*L1*Morse |
6*57*138*1 | 18*130*228*2 | 30*175*296*3 | 54*230*417*5 | 78*260*514*6 |
6.5*63*144*1 | 18.5*135*233*2 | 31*180*301*3 | 55*230*417*5 | 79*260*514*6 |
7*69*150*1 | 19*135*233*2 | 32*185*334*4 | 56*230*417*5 | 80*260*514*6 |
7.5*69*150*1 | 19.5*140*238*2 | 33*185*334*4 | 57*235*422*5 | 81*265*519*6 |
8*75*156*1 | 20*140*238*2 | 34*190*339*4 | 58*235*422*5 | 82*265*519*6 |
8.5*75*156*1 | 20.5*145*243*2 | 35*190*339*4 | 59*235*422*5 | 83*265*519*6 |
9*81*162*1 | 21*145*243*2 | 36*195*344*4 | 60*235*422*5 | 84*265*519*6 |
9.5*81*162*1 | 21.5*150*248*2 | 37*195*344*4 | 61*240*427*5 | 85*265*519*6 |
10*87*168*1 | 22*150*248*2 | 38*200*349*4 | 62*240*427*5 | 86*270*524*6 |
10.5*87*168*1 | 22.5*155*253*2 | 39*200*349*4 | 63*240*427*5 | 87*270*524*6 |
11*94*175*1 | 23*155*253*2 | 40*200*349*4 | 64*245*432*5 | 88*270*524*6 |
11.5*94*175*1 | 23.5*155*276*3 | 41*205*354*4 | 65*245*432*5 | 89*270*524*6 |
12*101*182*1 | 24*160*281*3 | 42*205*354*4 | 66*245*432*5 | 90*270*524*6 |
12.5*101*182*1 | 24.5*160*281*3 | 43*210*359*4 | 67*245*432*5 | 91*275*529*6 |
13*101*182*1 | 25*160*281*3 | 44*210*359*4 | 68*250*437*5 | 92*275*529*6 |
13.5*108*189*1 | 25.5*165*286*3 | 45*210*359*4 | 69*250*437*5 | 93*275*529*6 |
14*108*189*1 | 26*165*286*3 | 46*215*364*4 | 70*250*437*5 | 94*275*529*6 |
14.5*114*212*2 | 26.5*165*286*3 | 47*215*364*4 | 71*250*437*5 | 95*275*529*6 |
15*114*212*2 | 27*170*291*3 | 48*220*369*4 | 72*255*442*5 | 96*280*534*6 |
15.5*120*218*2 | 27.5*170*291*3 | 49*220*369*4 | 73*255*442*5 | 97*280*534*6 |
16*120*218*2 | 28*170*291*3 | 50*220*369*4 | 74*255*442*5 | 98*280*534*6 |
16.5*125*223*2 | 28.5*175*296*3 | 51*225*412*5 | 75*255*442*5 | 99*280*534*6 |
17*125*223*2 | 29*175*296*3 | 52*225*412*5 | 76*260*447*5 | 100*280*534*6 |
17.5*130*228*2 | 29.5*175*296*3 | 53*225*412*5 | 77*260*514*6 |
D*L2*L1*Morse | D*L2*L1*Morse | D*L2*L1*Morse | D*L2*L1*Morse |
18*130*228*2 | 30*175*296*3 | 54*230*417*5 | 78*260*514*6 |
18.5*135*233*2 | 31*180*301*3 | 55*230*417*5 | 79*260*514*6 |
19*135*233*2 | 32*185*334*4 | 56*230*417*5 | 80*260*514*6 |
19.5*140*238*2 | 33*185*334*4 | 57*235*422*5 | 81*265*519*6 |
20*140*238*2 | 34*190*339*4 | 58*235*422*5 | 82*265*519*6 |
20.5*145*243*2 | 35*190*339*4 | 59*235*422*5 | 83*265*519*6 |
21*145*243*2 | 36*195*344*4 | 60*235*422*5 | 84*265*519*6 |
21.5*150*248*2 | 37*195*344*4 | 61*240*427*5 | 85*265*519*6 |
22*150*248*2 | 38*200*349*4 | 62*240*427*5 | 86*270*524*6 |
22.5*155*253*2 | 39*200*349*4 | 63*240*427*5 | 87*270*524*6 |
23*155*253*2 | 40*200*349*4 | 64*245*432*5 | 88*270*524*6 |
23.5*155*276*3 | 41*205*354*4 | 65*245*432*5 | 89*270*524*6 |
24*160*281*3 | 42*205*354*4 | 66*245*432*5 | 90*270*524*6 |
24.5*160*281*3 | 43*210*359*4 | 67*245*432*5 | 91*275*529*6 |
25*160*281*3 | 44*210*359*4 | 68*250*437*5 | 92*275*529*6 |
25.5*165*286*3 | 45*210*359*4 | 69*250*437*5 | 93*275*529*6 |
26*165*286*3 | 46*215*364*4 | 70*250*437*5 | 94*275*529*6 |
26.5*165*286*3 | 47*215*364*4 | 71*250*437*5 | 95*275*529*6 |
27*170*291*3 | 48*220*369*4 | 72*255*442*5 | 96*280*534*6 |
27.5*170*291*3 | 49*220*369*4 | 73*255*442*5 | 97*280*534*6 |
28*170*291*3 | 50*220*369*4 | 74*255*442*5 | 98*280*534*6 |
28.5*175*296*3 | 51*225*412*5 | 75*255*442*5 | 99*280*534*6 |
29*175*296*3 | 52*225*412*5 | 76*260*447*5 | 100*280*534*6 |
29.5*175*296*3 | 53*225*412*5 | 77*260*514*6 |
