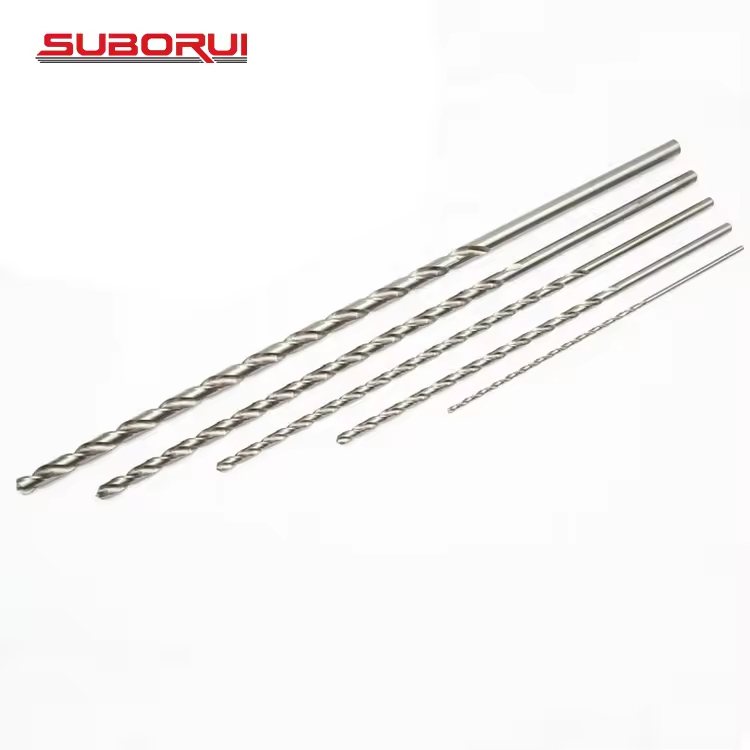

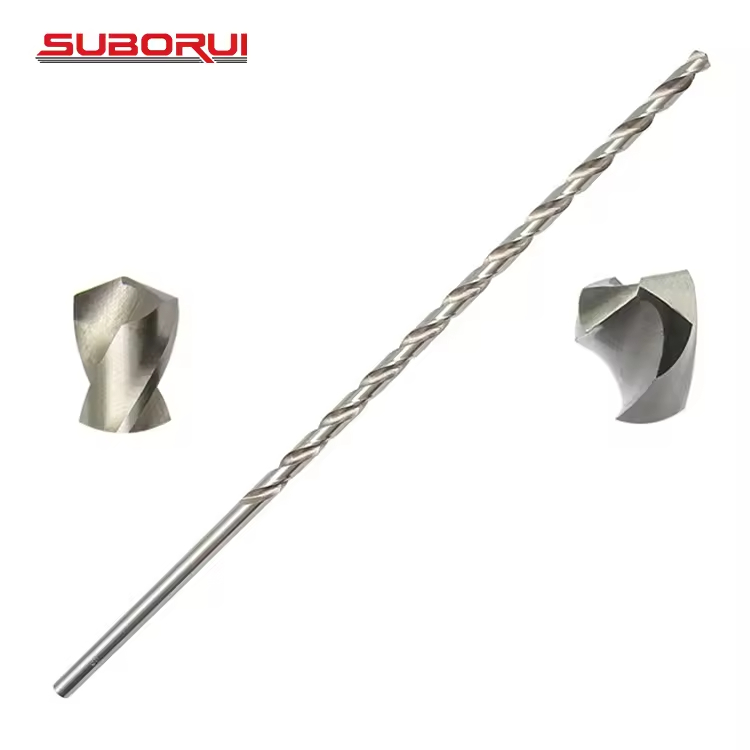

DIN1869 Extra Length Fully Ground HSS Straight Shank Long Twist Drill Bit

Material : High Speed Steel
Point : 135° Split Point
Shank Type : Round
Process : Fully Ground
Finish Type : Plain

  • SUBORUI

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

The extra-long, steel deep-hole drill bit for drilling deep holes in steel up to 1,000 N/mm²,

in cast iron and in composite materials (e.g. plastic profiles with steel core).

Diameter(MM)Flute Length(MM)Overall Length(MM)
3130190
3.5145210
4150220
4.5160235
5170245
5.5180260
6180260
6.5190275
7200290
7.5200290
8210305
8.5210305
9220320
9.5220320
10235340
10.5235340
11250365
11.5250365
12260375
12.5260375
13260375
Diameter(MM)Flute Length(MM)Overall Length(MM)
3.5180265
4190280
4.5200295
5210315
5.5225330
6225330
6.5235350
7250370
7.5250370
8265390
8.5265390
9280410
9.5280410
10295430
10.5295430
11310455
11.5310455
12330480
12.5330480
13330480

Diameter(MM)Flute Length(MM)Overall Length(MM)
285125
2.595140
3100150
3.5115165
4120175
4.5125185
5135195
5.5140205
6140205
6.5150215
7155225
7.5155225
8165240
8.5165240
9175250
9.5175250
10185265
10.5185265
11195280
11.5195280
12205295
12.5205295
13205295
Diameter(MM)Flute Length(MM)Overall Length(MM)
3130190
3.5145210
4150220
4.5160235
5170245
5.5180260
6180260
6.5190275
7200290
7.5200290
8210305
8.5210305
9220320
9.5220320
10235340
10.5235340
11250365
11.5250365
12260375
12.5260375
13260375
Diameter(MM)Flute Length(MM)Overall Length(MM)
3.5180265
4190280
4.5200295
5210315
5.5225330
6225330
6.5235350
7250370
7.5250370
8265390
8.5265390
9280410
9.5280410
10295430
10.5295430
11310455
11.5310455
12330480
12.5330480
13330480

Diameter(MM)Flute Length(MM)Overall Length(MM)
285125
2.595140
3100150
3.5115165
4120175
4.5125185
5135195
5.5140205
6140205
6.5150215
7155225
7.5155225
8165240
8.5165240
9175250
9.5175250
10185265
10.5185265
11195280
11.5195280
12205295
12.5205295
13205295
