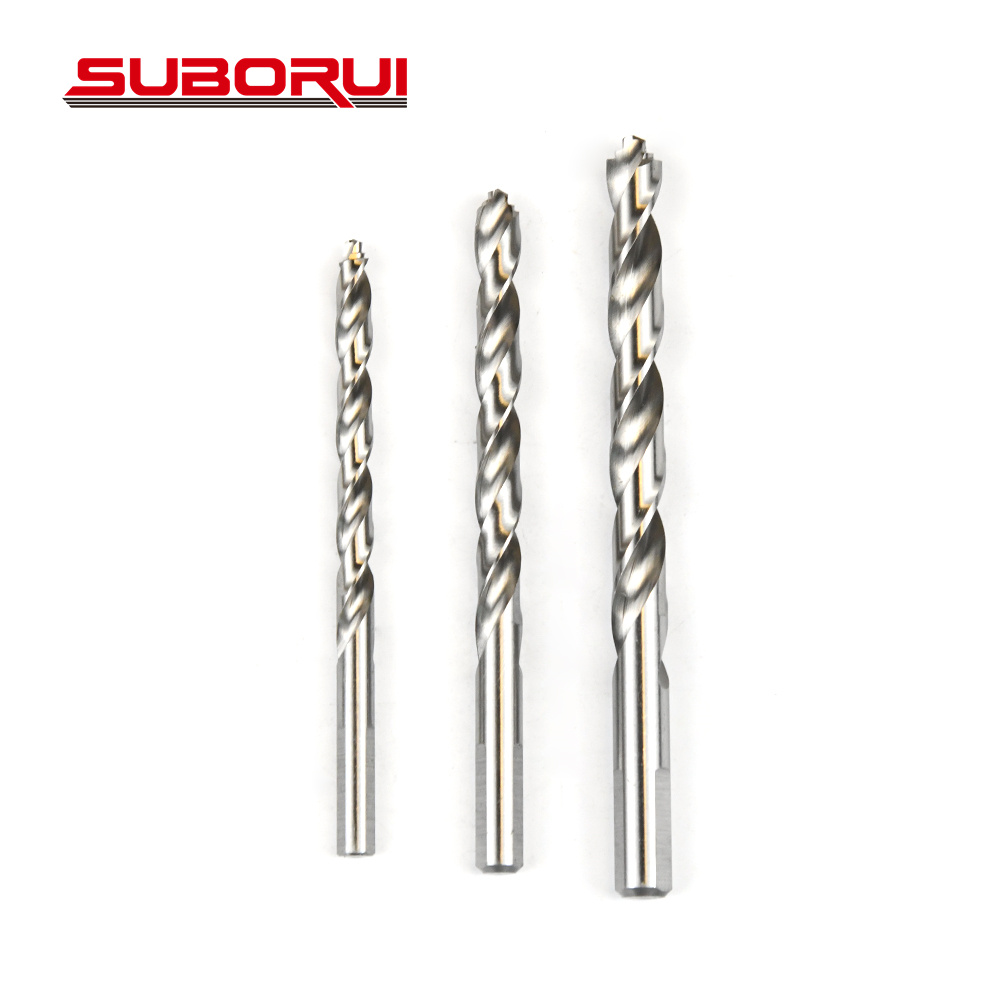

Industrial Multi-Functional Step-Point Twist Drill Bit – High-Performance Metal Boring Solution

The Evolution of Metal Drilling: One Bit, Zero Pilot Holes

Upgrade your industrial tool catalog with our Industrial-Grade Step-Point Twist Drill Bits. Engineered with a revolutionary multi-stage "Pagoda-style" tip, these bits combine the precision of a step drill with the deep-reaching capability of a standard twist drill. Designed specifically for high-efficiency metalwork, they eliminate the need for center punching or pilot holes, significantly reducing operation time for professional fabricators.

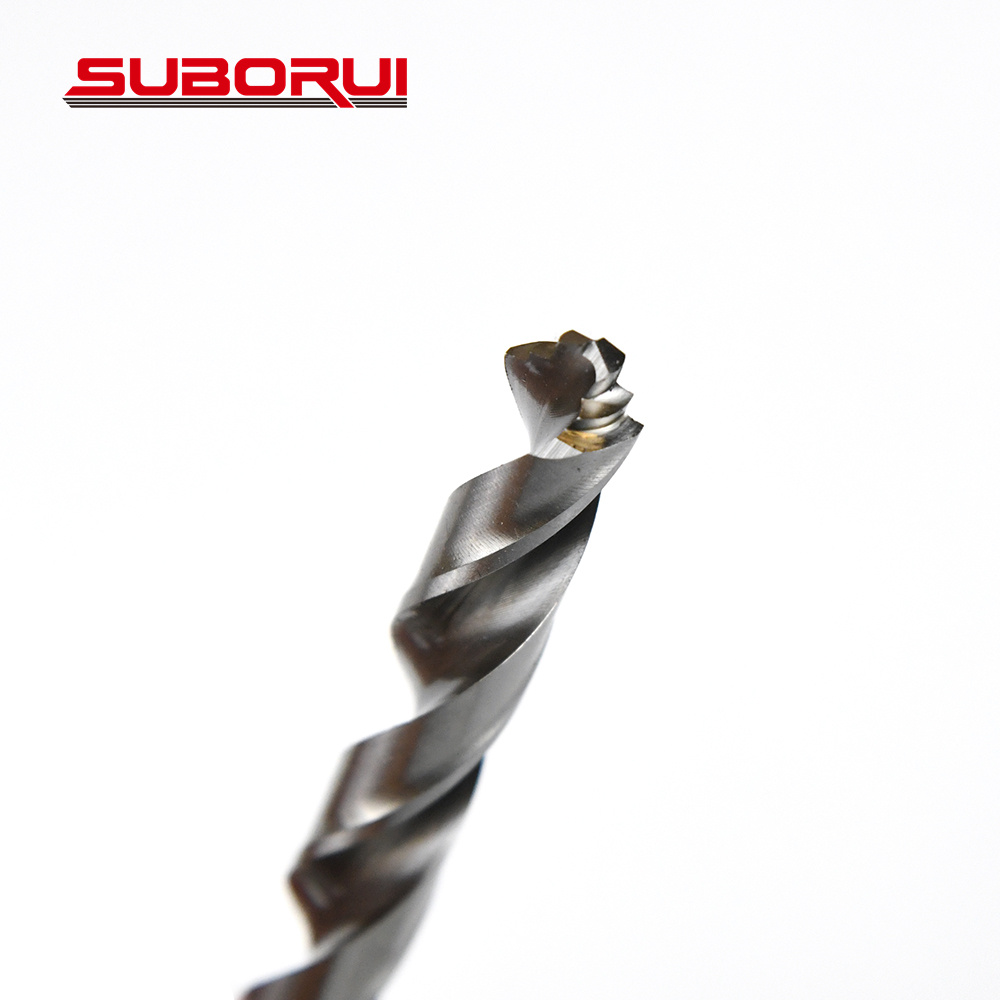

Core Innovation: The Step-Point Geometry

Unlike traditional 118° or 135° split points, our Stepped Tip design features multiple graduated cutting edges at the point. This provides:

1. Instant Self-Centering: The "tip-within-a-tip" prevents walking on smooth metal surfaces.

2. Multistage Cutting: The steps act as mini-cutters that gradually enlarge the hole, reducing torque requirements and preventing bit breakage.

3. Built-in Deburring: The stepped shoulder automatically smooths the hole entry as it drills, leaving a clean, professional finish.

Features

• Optimized for Tough Metals: Premium High-Speed Steel (HSS/HSS-Co) construction makes these bits ideal for Stainless Steel, Alloy Steel, Cast Iron, and Aluminum.

• Rapid Chip Evacuation: High-volume parabolic flutes ensure fast removal of metal shavings, preventing heat buildup and extending tool life in high-speed CNC or manual operations.

• 3-Flat / Round Shank Design: Depending on the model, the shank is engineered to prevent slipping in the chuck, ensuring maximum power transfer.

• Extreme Durability: Heat-treated to HRC 63-66 for superior wear resistance, reducing the "Cost Per Hole" for large-scale manufacturing projects.

Product Specifications: Industrial Step-Point Twist Drill Bits
