| Shank Dia.(mm) | Cutting Dia.(mm) | Cutting length(mm) | Total Length(mm) | Cut Type | Technique |
| 6 | 6 | 16 | 51 | Standard cut
Double cut
Aluma cut
Fine cut
Coarse cut | Welded |
| 6 | 25 | 50 | Solid Carbide |
| 8 | 20 | 65 | Welded |
| 10 | 20 | 65 |
| 11 | 25 | 70 |
| 12 | 25 | 70 |
| 14 | 25 | 70 |
| 16 | 25 | 70 |
| 18 | 25 | 70 |
| 19 | 25 | 70 |
| 20 | 25 | 70 |
| Shank Dia.(inch) | Cutting Dia.(inch) | Cutting length(inch) | Total Length(inch) | Cut Type | Technique |
| 1/4 | 3/16 | 9/32 | 2 | Standard cut
Double cut
Aluma cut
Fine cut
Coarse cut | Solid Carbide |
| 1/4 | 5/8 | 2 | Solid Carbide |
| 1/4 | 1 | 2 | Solid Carbide |
| 5/16 | 3/4 | 2-1/2 | Silver welding Copper welding |
| 3/8 | 3/4 | 2-1/2 |
| 7/16 | 1 | 2-3/4 |
| 1/2 | 1 | 2-3/4 |
| 5/8 | 1 | 2-3/4 |
| 3/4 | 1 | 2-3/4 |
| 7/8 | 1 | 2-3/4 |

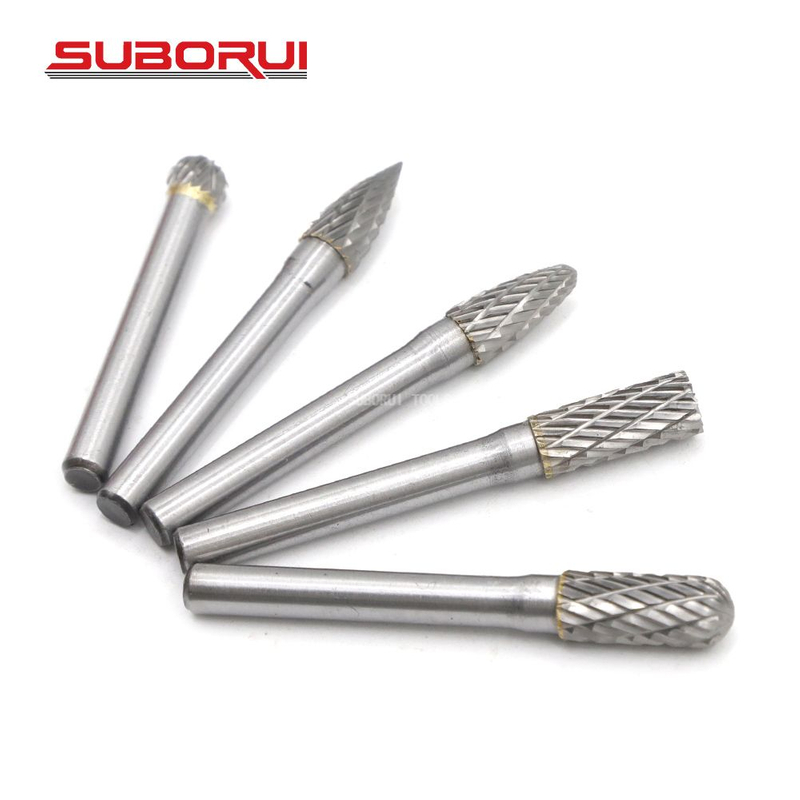

Product Details
● Very sharp, aggressive, tough, well-balanced and durable, perfect for tight spaces than grinding discs
grind wheel. Double cut produces a finer finish than single cut and reduces the size of the chips.
● High hardness (86~93HRA, equivalent to 69~81HRC);
● Good hot hardness (up to 900~1000℃, keeping 60HRC);
● Good abrasion resistance.
● The cutting speed of cemented carbide tools is 4 to 7 times higher than that of high-speed steel,
and the tool life is 5 to 80 times higher. Manufacturing molds, measuring tools, life span is 20-150
times longer than alloy tool steel. It can cut hard materials around 50HRC.
